New product introduction: IS60 inclinometer sensor, the product can be fully customized according to customers’ needs!

Those who venture into shallow waters gets fish and shrimp, while those who venture into deep seas get dragons. Having been deeply rooted in the field of sensors for 29 years, Sibo is constantly innovating and breaking through in response to customers' diverse, intelligent, and high-performance market demands for sensors. Today, we are excited to announce the official launch of Sibo's first inclinometer sensor IS60! This sensor, with its performance advantages and precise data acquisition capabilities, can accurately measure the tilt angle of objects in various complex environments, providing reliable data support for industrial automation, aerospace, and engineering machinery and other fields. We are also committed to providing comprehensive customized products based on the specific needs of our customers, including but not limited to precise customization of mechanical dimensions and electrical performance, to ensure that our products can perfectly integrate into the system performance of our customers. Next, we will provide a detailed introduction to the principle, features, advantages, and application scenarios of this inclinometer sensor, taking you to appreciate its charm.

01 Principle of Inclination Sensor

Firstly, we will take you into the "inner world" of the inclination sensor to see how it works. Inclination Sensor, as the name suggests, is a sensor used to measure the tilt angle of an object in a gravity field. The principle is generally divided into two categories:

The first type is the more traditional approach, which uses the fundamental principle of pendulum, commonly found in nature. Using a pendulum is to drive the rotating shaft to rotate, measure the rotating angle of the rotating shaft, and thus obtain the inclination angle of the measured object. The angle of the rotation axis can be read by a potentiometer, a contactless potentiometer, an encoder etc. various method.

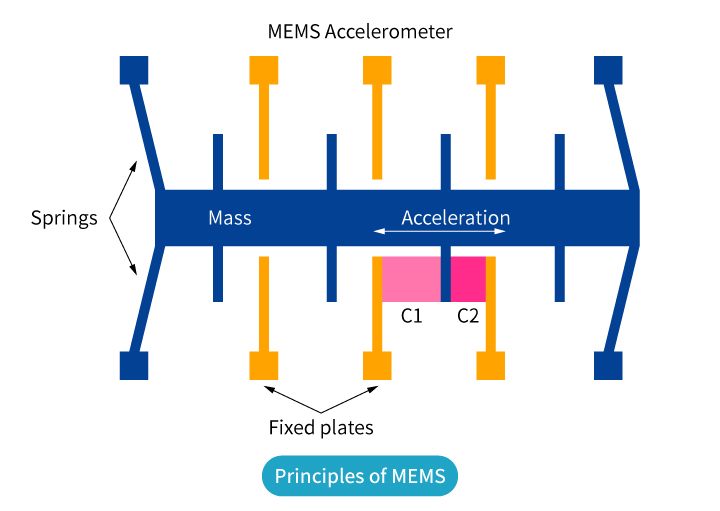

The second type is to use acceleration sensors to measure the components of gravity acceleration in the X, Y, and Z axes, and obtain the inclination angle of the measured object through calculation algorithms. The current relatively new MEMS technology MEMS chip is one of them. The MEMS chips measure acceleration through a micro beam structure on the chip and capacitance difference. The main internal structure of MEMS chips can be simply understood as consisting of a fixed electrode and an elastic electrode connected to a spring. When the sensor tilts, the relative position between the elastic electrode and the fixed electrode changes, resulting in a change in the capacitance between the two electrodes. The measurement of the tilt value is achieved by calculating the capacitance difference. It has the characteristics of small size, high sensitivity, high reliability, and long-life expectancy.

02 Product Introduction

The Sibo IS60 series static inclination sensors are designed based on the MEMS principle. In order to give you a more comprehensive understanding of this product, we will now focus on its specific performance parameters. Please let me explain them to you one by one:

Mechanical Specifications：

Range of application——single axis approx. 360°（±180°），horizontal dual axis approx.180°（±90°）。

Protection degree——The sensor housing is made of aluminum alloy material, with a protection degree up to IP67,which has good dustproof and waterproof performance, greatly improving the service life of the product.

Resolution——0.08°

Accuracy——±0.1°

Electrical Specifications：

Input voltage——3.3-5V, 9-30V and other operating voltage.

Output signal——0-5V, 0-10V, 4～20mA, SSI, RS232, RS422, RS485,CAN,etc..

Current consumption——less than 80mA

Power on start-up time——less than 0.1s

Response time——10ms

If you have other special requirements, we can also customize according to your needs.

03 Typical Applications of Inclination Sensors

After understanding the technical details of the IS60 inclination sensor, let's take a look at where it can play a key role!

Solar wind power generation: In solar power generation, the maximum efficiency of light energy utilization is achieved through the control of the tilt angle of the solar pane. In wind power generation, it is used to monitor the blade inclination Angle.

Engineering machinery field: It is widely used in a variety of engineering machinery angle monitoring, such as high-voltage power wire tower pole detection, high-altitude operation vehicle inclination angle detection, railway rail inclination and height difference real-time detection.

Equipment installation and maintenance: In industrial production, inclination sensors can be used to accurately measure the tilt angle of equipment or objects to ensure the smooth progress of the production process.

High precision laser instrument level: The inclination sensor can be used to measure and adjust the levelness of laser instruments to ensure accurate laser measurement and positioning.

Vehicle stability monitoring and driving assistance system: the inclination sensor can be used to measure the tilt angle of the vehicle under different driving conditions, which can determine whether the driving state of the vehicle is stable, and provide important parameters for the driving assistance system.

04 Inclination Sensor Tailored for You

We can provide you with a fully customized inclination sensor solution. Whether it is the measurement range, accuracy level, installation method and appearance dimensions, we can flexibly adjust to meet your various usage needs. We can also provide a variety of output signals: analog, SSI, RS485, CANopen and other bus signals to match your operating system and application environment. Our professional technical team will work closely with you throughout the entire process, from requirement analysis to product design, production and testing, to ensure that the product can operate stably in complex working environments. By choosing our customized inclination sensor, you will receive a precise and reliable measurement tool that is suitable for your application scenario, providing strong support for your device.

If you would like to learn more detailed product information, please pay attention to our website www.tmxkl.cn/en/ or call us at +86-21-66058508.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.
