When it comes to Sibo encoders, what model do you think of first? Is it the small EI22A or the heavy-duty EID58A or the multi-turn EAM30A? As we all know, these encoders are widely used in the field of engineering machinery. This week we recommend an economical incremental encoder EI35A-C1.
#01# Mechanical performance advantages

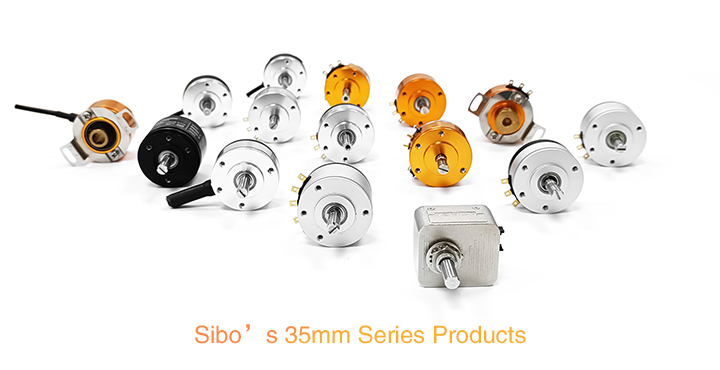

EI35A-C1 has the same installation size and installation method as Sibo’s contactless potentiometer 35 series. You can not only choose screw installation but also servo installation as well. The outlet method is side cable outlet, and of course special outlet methods can be achieved according to requirements.
In addition, its service life is not inferior to similar products. Due to the internal pair of precision ball bearings, its service life can reach more than 100,000,000 times.
Other mechanical performance is shown in the table below:
Protection level | IP54 |
Rotational torque | <1mN·m |
Maximum mechanical speed | 6000rpm |
Operating temperature | -40℃～+85℃ |
Storage temperature | -40℃～+85℃ |
#02# Electrical performance advantages
EI35A-C1 as an incremental encoder has the following electrical performance:
· The number of pulses can be selected, up to 4096.
· Signal delay ＜5μs
· Provide A, B, Z signal output
Other electrical performance is shown in the table below:
Operating voltage | 5～30V |
Output high level | ＞2.8V |
Output low level | ＜0.5V |
Output form | push-pull output |
Operating current | ＜20mA |
Wiring instructions are shown in the table below:
Red | Black | Brown | Green | Yellow |
VCC | GND | Channel A | Channel B | Channel Z |
#03# Product advantages
Recommended reason 1: Wide application field
As a high-cost-performance incremental encoder, EI35A-C1 is favored by many engineers and is commonly used in medical equipment, logistics transportation, mobile machinery, new energy and many other fields.
Recommended reason 2: Various special customization
In addition, EI35A-C1 can also accept various special customizations, such as special shaft length, milling plane processing on the shaft, slotting on the shaft, etc.
Recommended reason 3: High cost performance
Produced by Sibo and carefully selected for superior products. EI35A-C1 is not only superior in performance but also has advantages in price. It is your choice for cost reduction.
Welcome to inquire and order by tel: 021-66058508!
Of course, Sibo’s incremental encoders include not only EI35A-C1 but also other products such as compact size EI22A, high-performance EI40A and heavy-duty anti-magnetic interference EID58A. We welcome you to consult!
Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.
