Dear customers, Compilations of SIBO Joysticks is coming again! Today, let's look at Sibo’s large -sized joysticks.

90 Series

90J series joystick was launched in the early 1990s. It is a classic joystick designed by Sakae for the global high-end machinery field. It is famous for its solid structure, stable performance and a variety of optional specifications, and is loved by the majority of designers.

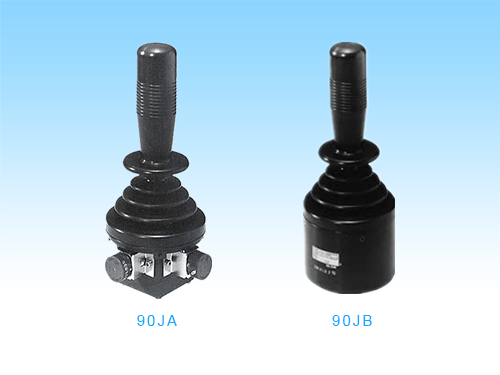

The core component of the 90J series is the FCP22E precision conductive plastic potentiometer that has been tested in the market. FCP22E potentiometer with long service life ensures the stable electrical performance of the 90J series joystick. Structurally, the 90J series joystick is divided into two types: 90JA and 90JB. Their electrical and mechanical performances are basically the same. The difference is that the bottom edge of 90JA adopts an open structure, and the potentiometer is outside-mounted. This structure has more expansibility, and additional connectors and other parts can be added by adding brackets. The 90JB adopts a closed structure at the bottom. All internal parts are wrapped by a protective cover, and the signal is led out through a cable. This structure has no expansibility, but improves its protective performance. Customers can select the more suitable product among the two 90J series products according to your own needs.

The knobs of the 90J series joystick also has a variety of options. In addition to the straight bar grip knobs, you can also select the switch-type knobs with push button switches or sea-saw switch, or even the rotary knobs that can be used as the third axis.

In addition, if the life expectancy of the 90J series joystick cannot met your demands, you can also try the H90J series. H90J series has almost the same appearance and mechanical structure as the 90J. Its special point is that the core component uses the non-contact potentiometer to replace the conductive plastic potentiometer FCP22E, which further greatly improves the life expectancy. At the same time, it is more suitable for the working environment with large shock and impact.

C90J

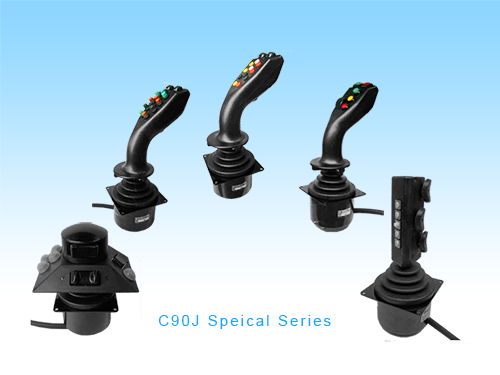

C90J series is an extended model of 90J. It adopts the basic mechanical structure of 90J series and is configured with a large cobra-headed shaped knob, which greatly enhances the function of the knob. What can be put on this cobra-headed shaped knob?

A. Switches

There are various push button switches of different types, round, square, illumination, etc.

B. Sea-saw potentiometer

You can select either the conductive plastic potentiometer of RMP30AF, or the non-contact potentiometer of RMP30HF, or even two!

C. Finger-tip joystick

Sakae's smallest joystick H25JB can be directly installed on the cobra-headed shaped knob.

D. Dead-man switch

There is a dead-man switch on the back of the knob, which is a necessary option in the situations where there are requirements for operation safety.

Switch diagram of C90J

Outside dimensions and optional specifications on cobra shaped knob.

The above options can also be used in combination to realize various complex control requirements. Due to its super customized function, C90J can meet complex industrial needs. It is a good helper for large equipment such as port machinery, forestry machinery, mining machinery and engineering machinery.

100JB Series

Compared with the famous 90J joystick above, 100JB is not so well-known. In fact, it is the largest one among the Sakae joystick series. 100JB comes with a large installation panel, which is very convenient to install. There is a protective cover under the panel, which improves the protective ability of the product. The knob is configured with a sea-saw potentiometer RMP30AY as standard, and the basic model can realize three-axis operation. The size of the upper part is small, which can adapt to the installation of low space. 100JB is plain, but it actually has so many advantages. You can pay more attention to it. Maybe it is the joystick you are looking for.

Compilations of SIBO Joysticks --- Big-sized Joysticks

Sibo is the most praised by its customers for its strong customer customization ability. Relying on the high-precision manufacturing equipment and mature quality process flow of Sakae maufactory, as well as the rich design experience and application experience of Sibo professional engineers, we can customize joystick controllers with various functions for customers. At the same time, Sibo's embedded software engineers can also provide adaptive communication signals according to customer systems. Sibo can provide a complete solution for you.
