In a nutshell: Shanghai Sibo’s SBS90M Signal Conversion Module integrates acquisition (6-channel analog + 10-channel switch inputs) and Bus communication (RS232, RS485, RS422, Modbus, USB FS HID, CAN2.0A/B, CANopen) into one robust industrial-grade device.

Expertly engineered for “acquisition” and “reading,” it efficiently handles multi-signal inputs from analog sensors (analog + switch signals) and multi-axis analog inputs (0–5V) + button (TTL) inputs from joystick products. The module then flexibly converts these into single or multiple Bus interface signals, supporting a variety of protocols to meet diverse industrial output requirements.

01 General parameters

Specifications:

Input port:

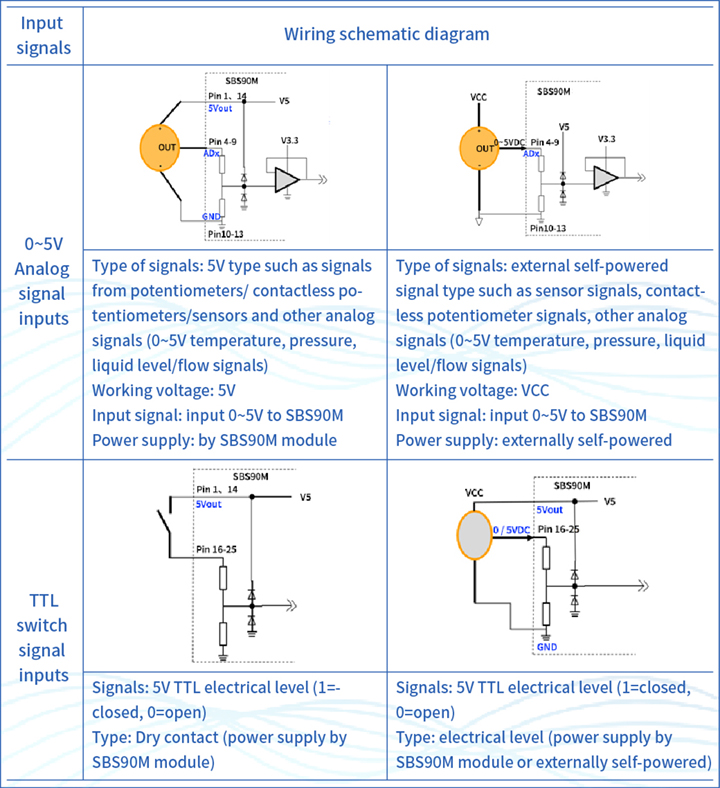

Input signals diagram:

Output port:

DB9/RJ45/接線端子/Mini USB, and other interface options (contact Shanghai Sibo for details).

02 Application scenarios

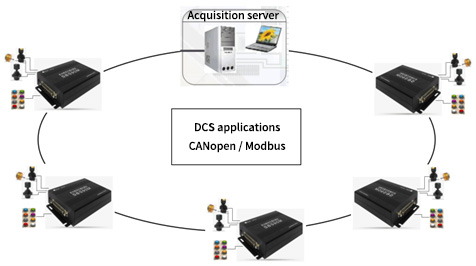

Application 1: DCS Analog Signal Acquisition (Digital remote transmission of analog signals)

Features: Enables distributed signal acquisition and bus-based digital transmission for DCS

Which solves problems including excessive wiring for long-distance analog signals, complex wiring, signal attenuation, susceptibility to interference, high installation and maintenance costs, and low reliability.

Application 2: Multi-Axis Joystick Position & Button Signal Acquisition

Features: Collects multi-axis analog signals and multi-switch inputs from remote control boxes/units, with bus-based remote transmission

Which is directly compatible with multi-axis joysticks (up to 6 axes) or control boxes, armrest consoles, and remote control boxes, with centralized acquisition followed by bus-based data upload.

Application 3: Multi-Output Signal Applications

Features: Remote data management, local acquisition/control, and local data monitoring

Which solves multi-location data sharing and local monitoring needs

Example configuration:

1、RS485 Modbus (remote) + RS232 (local)

2、RS485 Modbus (remote) + CANopen (local control) + HMI monitoring

Application 4: Dual-Network Data Sharing

Features: Enables direct data sharing across dual networks (e.g., CANopen + Modbus) without additional converters

Which solves the need for seamless data sharing between CAN and 485 networks

03 Sibo: Dedicated to Your Success

Beyond the SBS90M signal conversion module introduced here, we also provide current/voltage signal conversion modules, Isolated/non-isolated signal conversion modules. We also offer customized solutions tailored to your specific application scenarios. At Sibo, we remain committed to technological innovation, helping customers break through signal transmission bottlenecks and achieve smarter, more efficient signal connectivity!
